Changing a clip-free spotlight bulb: the safe method

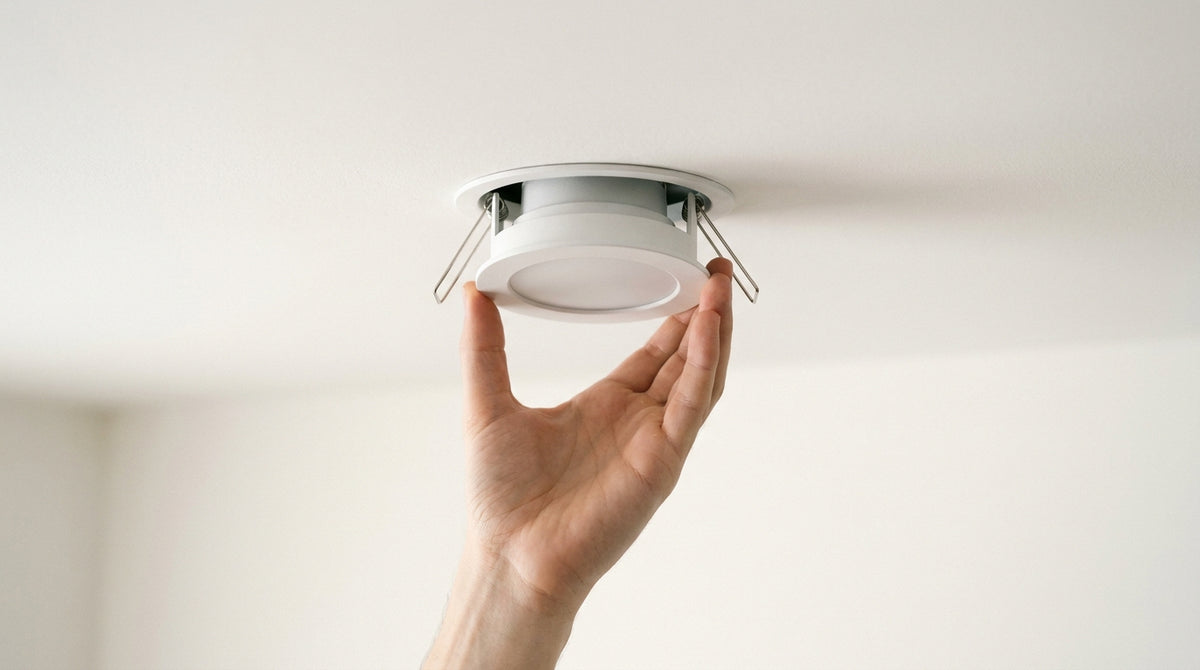

A recessed spotlight without visible clips or trim is removed from below. First, turn off the power at the circuit breaker, then gently pull the unit toward you: the side springs will compress and release the spotlight from the ceiling. You can then access the socket or quick-connector to replace the bulb.

The difficulty is never strength, but identification. Depending on the model, you are dealing with a standard replaceable bulb, a quarter-turn module, or an LED soldered to the unit. Before choosing a new bulb, identify your socket base: it dictates everything else, and our LED spotlights and bulbs cover the most common formats.

How to change a bulb in a frameless spotlight?

Without a visible trim, the spotlight is held by internal springs or a bayonet system. Turn off the power at the circuit breaker, never just at the switch. Firmly grasp the edge of the spotlight and pull 2 to 3 cm downwards: the spring legs will retract and the unit will come down. If the bulb is warm, wait for it to cool down completely.

A spotlight often sticks because paint or plaster has sealed the perimeter. Slide a thin plastic card or spatula under the edge to loosen the perimeter without marking the ceiling. Never force it from one side only: you risk cracking the plaster of the false ceiling.

The standard installation diameter is between Ø55 and Ø68 mm for the drill hole. This detail matters if you need to buy a complete new spotlight rather than just a bulb. For a living room, the same principles detailed for installing recessed spotlights apply to removing them.

How to remove the bulb cover?

A spotlight cover is removed using one of three distinct mechanisms. The first is a spring ring that is pinched toward the center. The second is a plug-in base that pulls straight out. The third is a quarter-turn module: rotate it an eighth to a quarter turn counterclockwise, then release it.

Once the unit is removed from the ceiling, the process becomes simple. Here are the steps to follow, including safety measures.

For an adjustable spotlight, the pivoting ball must first be unclipped from its cradle before you can reach the bulb. Locate the small side notch and carefully use a lever. In a bathroom, check the model's IP rating before reconnecting.

Unsure about which base or wattage you need? A Designix advisor can guide you to the exact bulb or spotlight that matches your model.

Is a transformer needed for a GU10 LED spotlight?

No. A GU10 base spotlight works directly on the 230V mains and does not require a transformer. Transformers are only for low-voltage lighting: G4, G9 bases and 12V MR16-type pins, which pass through a power supply box hidden in the false ceiling or near the light fixture.

Identifying your base avoids the most frequent purchasing error. The GU10 is distinguished by two wide-headed lugs that are inserted and then locked with a quarter turn. The G4 and G9 have thin, closely spaced pins that are plugged in without rotation. Confusing the two will fry the bulb or the driver.

If you are replacing an old 12V halogen spotlight with an LED, keep in mind that the original ferromagnetic transformer sometimes struggles with the low load of an LED. Flickering at startup often comes from this. Our guide on the different types of bulbs details each base and its voltage.

Regarding power, a 4 to 6W GU10 LED provides as much light as a 50W halogen, for a fraction of the power consumption. This lighting collection brings together models ready to install in the correct format. To refine the look, learn how to choose your bulbs correctly depending on the room.

How to distinguish an integrated LED from a replaceable bulb?

An integrated LED forms a sealed unit: no bulb can be unscrewed or removed; the light source is soldered into the spotlight body. A replaceable bulb, however, shows a distinct base (GU10, G9, G4) that is removed on its own. When in doubt, look for a detachable junction behind the glass or diffuser.

When the LED is integrated and burnt out, you don't change the bulb: you replace the entire unit. Locate the quick-connector at the back, press the tabs, detach the old module, and clip in the new one using the same installation format. It is more economical than it seems for standardized models.

If your spotlight is controlled by a dimmer, check compatibility before buying: not all LEDs are dimmable. This point deserves attention, and our comparison of dimmable bulbs will prevent flickering at low levels.

Before turning the power back on, check the connector tightness and ensure no bare wires are visible. One final useful tip for connecting an LED safely: only switch the circuit breaker back on once the unit is reinstalled and the spotlight's edge is flush against the ceiling.
