Safely connecting an LED: a step-by-step guide

A LED light that won't turn on, or a driver that burns out on first contact: the error almost always lies in the wiring, rarely in the product itself. Connecting a LED at home is nothing like mounting a component on a breadboard with an anode, cathode, and resistor to solder. In a house, you are connecting a finished device to your installation: three wires, a terminal block, a flipped circuit breaker, and you're all set.

This guide covers domestic wiring, the kind that no electronics manual really details: connecting a light to the mains (live, neutral, ground), powering a strip without a plug, and above all, avoiding the mistake that destroys the power supply. If you are looking for a pre-wired model first, our LED lighting collection includes ready-to-install options, with no soldering or calculations required.

Which way should I connect a LED?

A LED (light-emitting diode) only allows current to pass in one direction. Current enters through the anode (long leg, + pole) and exits through the cathode (short leg, - pole). Reverse the polarity, and nothing lights up. A bare LED operates between 1.5 and 3.3 V, hence the need for a series resistor when using a battery.

This polarity applies to the component alone. As soon as you are dealing with a strip, a 12V spotlight, or a bulb, there is a mark indicating the direction: an arrow on the strip, a + and - on the terminal block, or a standardized screw base. For a mains-powered model, the internal electronics manage the current direction automatically.

That is the whole difference with hobby electronics: a finished product saves you the calculation. Most of the references in our lighting range arrive factory-wired, so you only have to handle the three output wires.

How do I connect the live and neutral wires for a LED light?

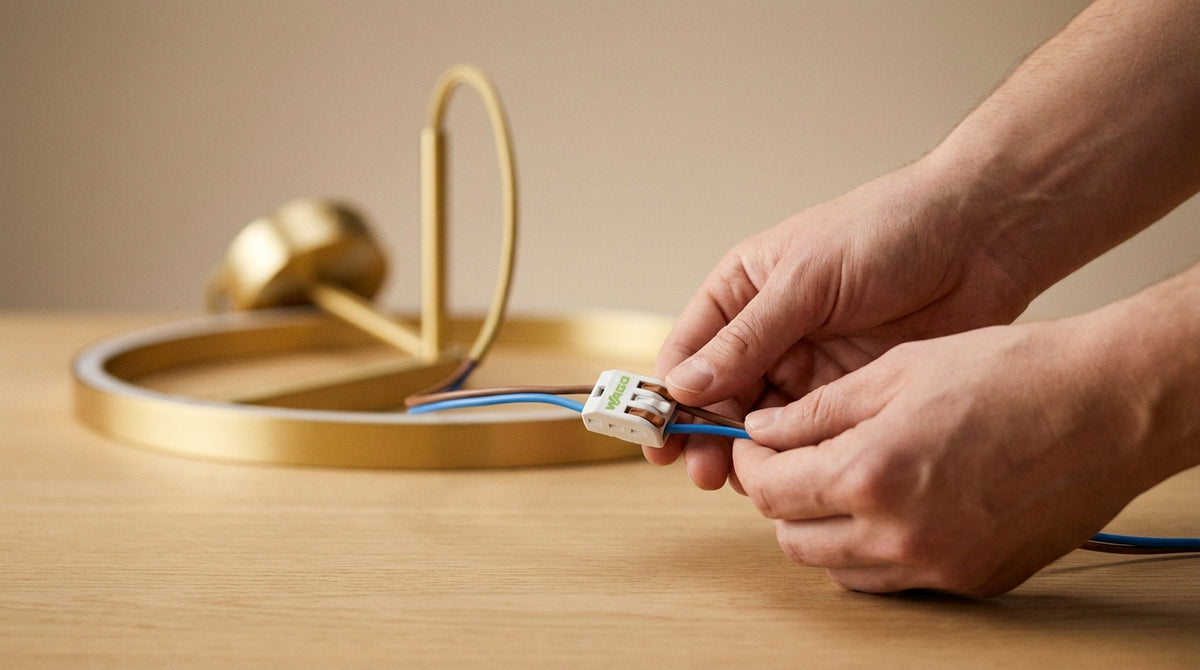

Turn off the circuit breaker first. Three wires are waiting for you on the ceiling: blue (neutral), red or brown (live), and green-yellow (ground). Connect each color to its counterpart on the light fixture using a terminal block or a quick connector. Only turn the power back on once everything is tightened.

Step by step:

1. Turn off the relevant circuit breaker and check for voltage using a tester.
2. Strip 8 to 10 mm of insulation from the wires if the connector requires it.
3. Connect blue to the N on the light, brown (or red) to the L, and green-yellow to the ground.
4. Tighten each terminal, tuck the wires into the box, and fix the support.
5. Turn the power back on and test.

The ground wire is not always present in older installations; a Class II (double-insulated) light fixture can safely function without one. For a ceiling point, the logic remains the same as connecting a standard ceiling light.

Unsure about the connection to your electrical panel? It is better to ask our advisors for guidance before connecting rather than frying a driver that cannot be replaced individually.

How do I connect LEDs without a plug?

A LED strip is never connected directly to 230V: it requires a transformer (driver) that steps the voltage down to 12 or 24V. Connect the driver output to the + and - terminals of the strip while observing the markings, then power the driver. For portable use, a battery box can replace the mains power.

Three scenarios frequently arise:

• Strip on the ceiling or in the kitchen: driver sized for the total length, clip-on connectors for trimming.
• Battery-powered or cordless lighting: practical for a closet or shelf, with limited battery life.
• Multiple sources on the same circuit: connect in parallel to maintain the same voltage everywhere.

Watch the power: add up the watts of the sections before choosing the driver; an undersized power supply will overheat and fail. The principle for connecting multiple lamps to one switch also applies here. And if you are aiming for adjustable lighting, check for compatibility with a dimmable bulb before purchasing.

Which LED light should I choose for simple installation?

The easiest option remains plug-and-play: a light fixture delivered pre-wired with an integrated terminal block, or a bulb with a standard base that screws in without tools. E27 and GU10 bases cover most domestic needs and can be installed in seconds, with no external driver or polarity to monitor.

Our figures settle any doubts: based on a survey of 240 pendant lights in our catalog as of September 12, 2026, CE certification is present on 100% of product pages, a 2-year warranty on 100%, and an IP20 rating on 95%. The LED Lighting collection itself includes 15,969 references as of September 12, 2026.

To choose, two markers are enough: the room (IP20 is suitable for the living room, IP65 is necessary near a water source) and the base if the model uses a bulb. Further reading helps: our guide on switching to all-LED lighting at home and the one on choosing the right type of bulb detail each case.

Finally, the selection is reviewed by buyers: the Designix Google profile displays up-to-date reviews, which are more reliable than copied-and-pasted scores that age poorly.
