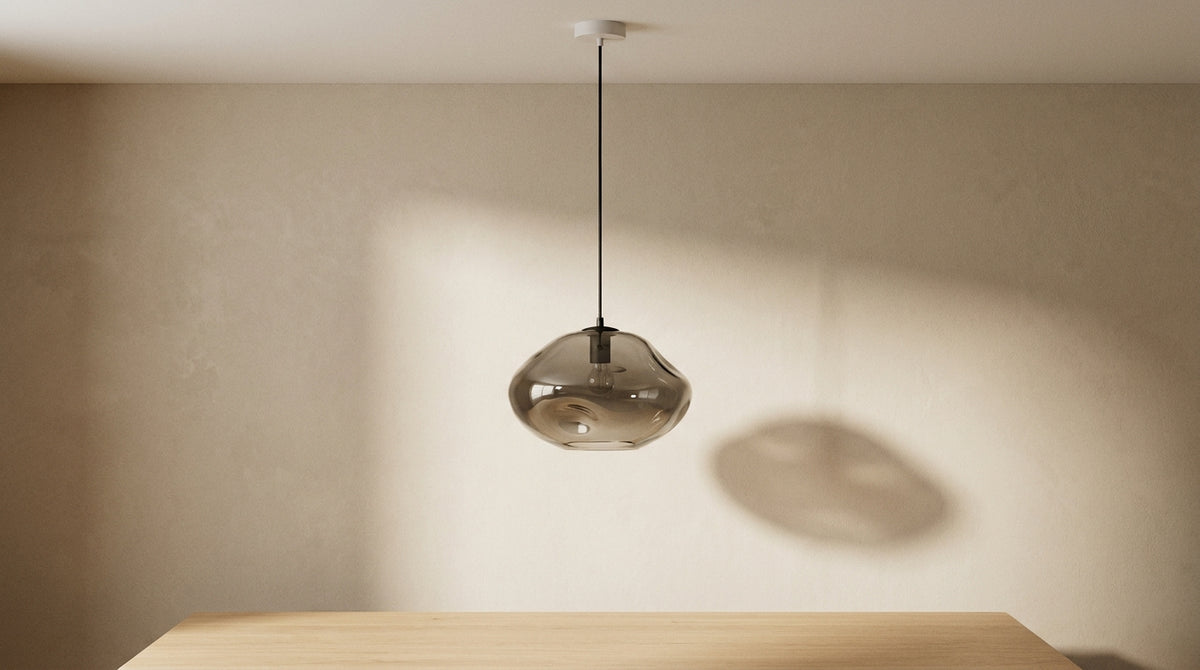

Installing a pendant light on a DCL ceiling box: step by step
This article is also available in French: Comment installer une suspension sur un boitier dcl
Switch off the breaker, unclip the temporary bulb holder, pull the DCL plug out of the ceiling box. Connect the live wire to terminal L, the neutral to N, the earth to the central contact. Clip the plug back in, hang the light on the hook, adjust the cable length, then restore the power.
How do you install a pendant light on a DCL ceiling box?
The DCL ceiling box stays in the ceiling: it is the removable plug that gets replaced, never the building's wiring. You unclip the temporary bulb holder, connect the plug to the light, then clip the whole assembly into its base. The connection holds without any visible connector block, and comes apart as quickly as it went together.
What a DCL ceiling box really contains
Four elements share the ceiling, and confusing them is the first source of error.
- The base: screwed to the ceiling, it carries the building's wiring and is not removed.
- The DCL plug: a removable connection block with three marked terminals, L, N and earth.
- The temporary bulb holder: a provisional bulb fitting supplied with a new home, to be removed.
- The hook: it takes the weight of the pendant light, not the plug.
In a recently delivered home, the temporary bulb holder is often still in place. A light fitting to connect to a DCL ceiling box replaces it in a few minutes, without touching the base.
A ceiling point rarely moves on its own. If you take the opportunity to redo the whole room, the renovation of your living space is planned before choosing the model, not after.
How do you remove the electrical wires from a DCL bulb holder?
Press the tabs on the block and pull the bulb holder downwards: it comes off without tools. The connections are spring or screw terminals, never soldered. If the bulb holder resists, a side clamping screw is still holding the block.
- Breaker switched off and power supply checked as absent.
- Unclipping of the bulb holder, without pulling on the cables.
- Marking the position of each wire before loosening.
- Releasing the conductors one by one, then pulling out the plug.
The general method applies to any light fitting to be mounted on the ceiling. And making a chandelier safe follows the same reflexes: switch off, mark, check, then tighten.
Once the base is free, all that remains is to choose what will hang below it. A pendant light is chosen on the basis of its socket, diameter and weight, not just the photo.
How do you wire the cables of a pendant light?
Open the DCL plug: three terminals are waiting for you. The live wire, brown or red, goes to L. The neutral, blue, goes to N. The earth, green-yellow, goes to the central contact. Strip each conductor over 8 to 10 mm, slide it under the screw, tighten, then pull gently to check it holds.
Live, neutral, earth: which wire goes to which terminal?
| Terminal | Wire | Usual colour | Role |
|---|---|---|---|
| L | Live | Brown, red or black | Supplies the light |
| N | Neutral | Blue | Closes the circuit |
| Earth | Protection | Green-yellow | Carries a fault to earth |
If in doubt about the order, wiring a ceiling lamp is checked wire by wire before restoring the power.
How do you install a pendant light with 2 wires?
Two wires indicate a class II light fitting with double insulation: it does not need an earth. The central terminal of the plug stays empty, and that is normal. Never bridge the earth to the neutral to make it look neat, you would remove the protection from the circuit.
- Class II: double insulation, earth not needed.
- Central terminal: left free, never bridged.
- Marking: L and N are enough, in that order.
- Tightening: each wire pulled to check.
Connecting a light fitting to the ceiling with two conductors therefore comes down to just two terminals, provided the marking is correct.
What is your ceiling situation?
Pendant lights for a DCL ceiling box
At what height should a pendant light be set above a table?
Allow 75 to 85 cm between the bottom of the shade and the top of a dining table. Below 70 cm, the light fitting enters the diners' field of vision. Beyond 90 cm, the light spreads out and the table loses its pool of light. The final adjustment is made with the light on, sitting in your own seat.
The right distance between the shade and the tabletop
| Use | Height guide |
|---|---|
| Dining table | 75 to 85 cm above the tabletop |
| Kitchen island | 75 to 90 cm above the worktop |
| Living room coffee table | About 1.10 m from the floor |
| Hallway, entrance | 2.10 m minimum for passage |
The material changes how the height is perceived: glass pendant lights diffuse light upwards as well as downwards, whereas opaque metal concentrates the flow onto the tabletop.
Nothing is set in stone, though. A model of the adjusting the height of a pendant light type can be adjusted to the centimetre, without taking the plug down again.
Hallway, entrance, high ceilings: adapting without reworking the ceiling
Where the ceiling is high, you do not hang the light higher: you lengthen the cable. A hallway is judged by the passage, an entrance by the effect produced from the door.
- High ceilings: lengthened cable, without a visible intermediate part.
- Hallway: clear space for movement.
- Entrance: a round, centred shape guides the eye from the threshold.
- Low ceiling: short pendant light or ceiling light, never a cable cut any old way.
Out of a survey of 92 pendant lights in our catalogue as of 28 September 2026, 98% are suspended mountings. The cable length is therefore part of the model: it is not an accessory added afterwards.
What to do when the DCL ceiling box is not enough?
Three situations fall outside the standard method: a heavy pendant light, a hollow or sloped support, and the absence of a ceiling box. In all three cases, the solution lies not in the plug but in the support. You reinforce or move the fixing before connecting anything.
Heavy pendant light: what changes
The weight of a large chandelier must never rest on the DCL plug. The hook or the plate takes the load, the plug only carries the current.
- Hook: anchored in the ceiling or fixed into the concrete.
- Plate: screwed onto the base's fixing points, it provides the mechanical support.
- Plug: held in place, with no pulling force on it.
- Cable: left flexible, never stretched like a guy rope.
A chandelier mounted on a DCL ceiling box is therefore prepared before it is hung, not after.
Sloped ceiling or hollow support
A sloped ceiling changes the vertical: the pendant light hangs straight, but its anchor point moves back. On a hollow support, lining or panelling, only a through-fixing will last.
Choosing a light fitting for a sloped ceiling comes down to the fixing ball joint, which compensates for the angle without straining the cable.
On a support that refuses the screw, fixing a light fitting to the ceiling without drilling requires a wide plate and a well-prepared surface, not just adhesive.
No DCL on the ceiling: what are the options
Without a ceiling box, two routes open up: create the ceiling point, or avoid drilling. In a rented home, the second is often the only possible one.
A pendant light without drilling relies on the fixing points already present in the room, which avoids having to negotiate with the landlord when you leave.
Before finalising your choice, the reviews left on our Google listing remain the most up-to-date reference for judging the support you will receive, without a fixed figure in this article.
If your ceiling inspires less confidence than the light itself, cracked support, a box that moves, an unusual height, the shortest route is to talk to the Designix team before drilling: every request is read and receives an answer on feasibility.
