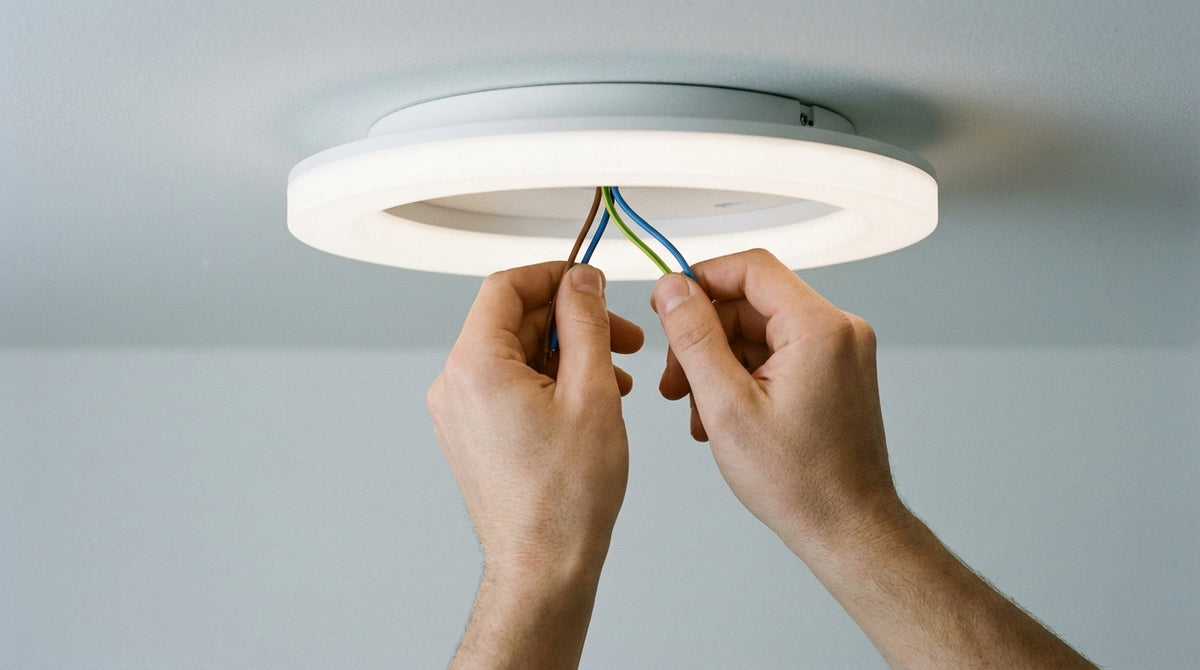

Wiring a ceiling light: the safe, step-by-step installation
This article is also available in French: Brancher un plafonnier
Switch off the circuit breaker, check that there is no voltage with a tester, then connect: brown or red to live, blue to neutral, green-yellow to earth. Identify each wire before tightening the terminals, never after. A double-insulated ceiling light has only two wires and does not take an earth.
How do you wire a ceiling light without getting it wrong?
Three steps, in this order: switch off the circuit at the consumer unit, confirm there is no voltage with a tester, then identify each conductor before sliding it into a terminal. The connection itself takes a few minutes; the checking is what prevents mistakes. The most straightforward models to install remain those in our plafonnier led collection.
Switch off at the breaker, then check with a tester
Flipping the breaker is not enough. A mislabelled circuit, a forgotten two-way wire, and 230 V is still live on a wire you are holding. The tester is applied to each conductor, one by one.
- Breaker identified at the consumer unit, not merely switched off
- Tester applied to both live and neutral
- Stable stepladder, both hands free to hold the conductors
Removing the old light fitting is done after this check, as detailed in our guide to changing a ceiling light.
Identify live, neutral and earth before connecting
Each colour has a function, and a mix-up does not show during installation: it shows on the first repair.
| Conductor | Colour | Role |
|---|---|---|
| Live | Brown, red or black | Supplies the light fitting |
| Neutral | Blue | Closes the circuit |
| Earth | Green-yellow | Protects, only on a class I device |
The comparison above settles the three situations you find at the ceiling. After that, the lighting catalogue is read room by room: living room, bedroom, hallway, entrance.
Which wires to connect for a light fitting: 2, 3 or 4 wires?
Two wires, live and neutral, correspond to a double-insulated device. Three wires add the earth, which is always connected. Four wires often indicate a two-way switch wire mixed in with the others. The number of terminals on a connector block never tells you the function of the conductors. Our guide wiring a light fitting to the ceiling covers each configuration.
Wiring a 2-wire ceiling light: the double insulation case
A class II device bears a square within a square. It expects only two conductors, and the earth wire present at the ceiling then stays in an insulated terminal block, outside the light fitting. You do not cut it, and you do not leave it bare.
Wiring a 3-wire ceiling light: live, neutral and earth
Three conductors, three terminals, and the green-yellow tightened with the same care as the other two. After tightening, pull gently on each wire: a conductor that slips becomes a hot spot. Our article on wiring a 3-wire chandelier walks through the full sequence.
Wiring a ceiling light to a switch: what two-way switching changes
An extra wire at the ceiling is not a fault. It is the traveller of a two-way switch, or the return from a second control point. It arrives on a different cable from the neutral. On a simple ceiling light, only one of the two is connected; the other stays isolated in a connector block.
If your installation does not match any of the three cases described here, the Designix team replies within minutes and travels across the Lyon metropolitan area to settle it on site.
How do you know whether a light fitting is class 1 or 2?
A square within a square on the label indicates class II, with no earth. A marked terminal, or a green-yellow wire already crimped, indicates class I. No measuring instrument is needed: a few seconds of reading before climbing the stepladder is enough.
Where to read the symbol on the label
The marking hides on the backplate, under the cover, or on the product listing. In a review of 88 references from our catalogue on 5 October 2026, CE certification is declared on 100% of the listings; the class symbol, however, is read case by case.
What the earth terminal tells you
- Class I: visible earth terminal, green-yellow wire expected
- Class II: double insulation, two conductors only
- DCL box: plug-in connector, the earth stays on the box side
Our article on wiring a lamp to the ceiling describes both setups.
Unclipping the DCL plug without forcing it
The plug is removed by pressing the side tabs, never by pulling on the cables. To release the conductors from the lampholder, press the catch of each terminal with a flat screwdriver, one wire at a time. The box stays in place: only the plug moves. Our guide to installing a light fitting on a DCL box details the procedure, and the lampe plafond collection offers other shapes if the original format no longer suits you.
Wiring an LED ceiling light, or one with no electrical supply: the special cases
On an LED ceiling light, the 230 V does not supply a bulb but a driver, often housed in the body of the fitting. With no supply at the ceiling, there are two options: an exposed cable from a socket, or a self-contained model. Each solution has its limits, and the choice is made before buying.
Integrated driver: where the 230 V arrives
The terminal block receives live and neutral, then the driver converts the current for the LED panel. Two points are checked before tightening: compatibility with a wall dimmer and the presence of an earth terminal if the device is class I. Dimming is declared on only 26 of the 88 listings in our review of 5 October 2026.
A ceiling light that dims changes how a room is used: full power for reading, low light for dinner. Above a table, a suspension salon plays exactly that card.
Wiring a ceiling light to a socket: the solution and its limits
A flexible cable left in place, neat trunking, and the light fitting works without touching the consumer unit. The limit is clear: no dedicated wall switch, unless you fit a wireless control. Two light fittings can share the same supply, provided their wattages are added together. Our article on wiring several lamps to one supply explains how to distribute them.
Without drilling: what actually holds
Before choosing a drill-free fixing, test the strength of the surface: a hollow slab and a concrete block do not hold a light fitting in the same way. Our article on testing the surface before drilling gives the method. For a lightweight model, drill-free solutions exist, with a maximum weight to respect, as our guide plafonnier sans percer reminds you.
Which ceiling light to choose once the wiring is sorted?
Once the connection is sorted, the real question remains: the light. A ceiling light is chosen for the volume it must light, the available height and the style of the room. In a living room, a discreet model lets the centre breathe; above a sofa, a large format takes on the role.
In our review of 88 references on 5 October 2026, LED technology is declared on 62 listings, and black dominates among the finishes recorded. Two useful reference points when you are torn between a discreet shade and a graphic black. For a living room, the plafonnier salon collection gathers the large formats; above a table, a chandelier changes the scale. The selection is reviewed by buyers, and the Designix Google listing can be checked with one click.
