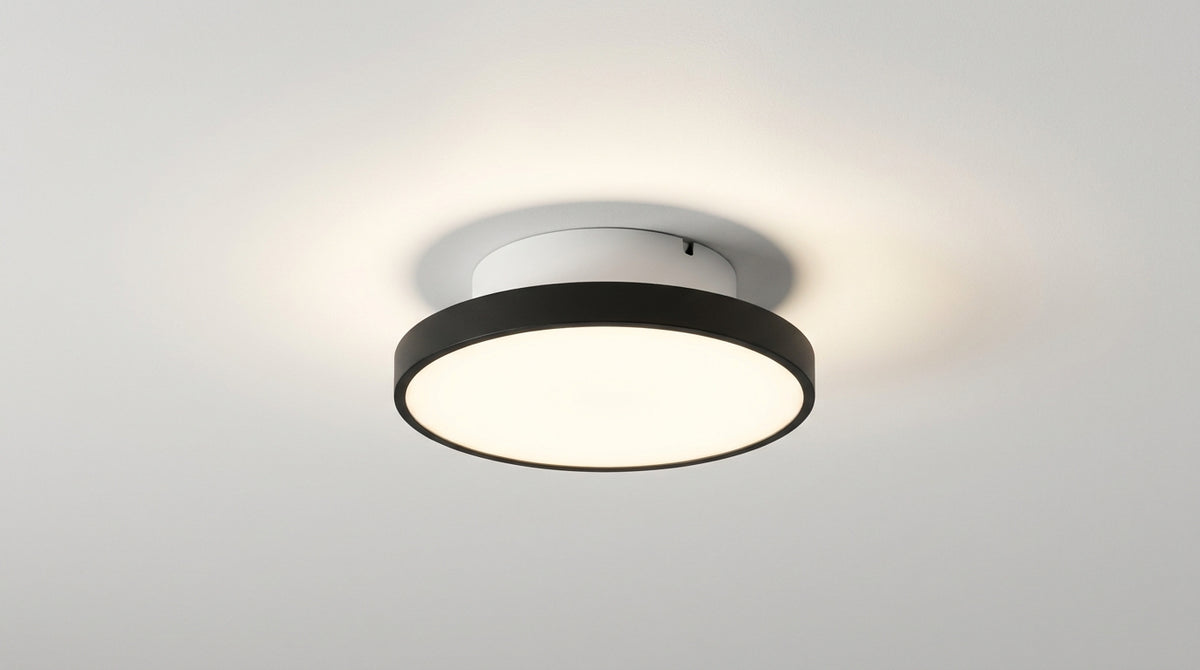

Installing a ceiling light on a DCL box: the step-by-step guide

Switch off the power at the breaker, unclip the cover and look at what is holding your ceiling: a screw box, a hook to replace, a hollow slab or solid concrete. That starting point decides the model, never the other way round. Allow two kilos of load per point for a ceiling light of average size.

How do you fix a DCL box to the ceiling?

The box is screwed into the flush mounting box set into the slab, or surface-mounted when the ceiling is bare. Two screws are enough, but their type depends on the substrate. The box never holds the light fixture: it provides the electrical contact, the fixing lives next to it. A surface-mounted ceiling lamp makes do with this support, whereas a pendant model calls for a hook.

Recessed box or surface-mounted box?

The recessed one disappears into the slab and leaves a clean ceiling. The surface-mounted one makes up for an uneven slab or a ceiling with no provision. The criterion is structural before it is aesthetic.

• Recessed: requires an existing flush mounting box of standard diameter.
• Surface-mounted: screws onto any solid substrate, plaster as well as concrete.
• Plasterboard: screw into the backing plate or into the box, never into the thickness of the board alone.
• Concrete: expansion anchor, two points minimum.

Which screw for a DCL box?

The useful length is calculated from the thickness of the box plus that of the substrate, with twenty millimetres of real grip. A box that moves under your finger is a box to redo. The connection itself is detailed in our guide to installing a light fixture on a DCL box.

The rest comes down to the model: our selection of light fixtures covers both mountings without adaptation.

Is the DCL mandatory, and what does it really change?

No, the DCL is anything but an obligation: it is an installation convenience. It standardises the connection so that changing a light fixture can be done without touching the wires, and it avoids opening a dubious terminal block at every intervention. A classic ceiling light connects perfectly well without it.

What the DCL plug avoids when connecting

The plug gathers the three conductors on a dedicated block. You unplug, you plug back in, without stripping or redoing a splice. On a high ceiling, this detail changes everything: less time with your arms up, less risk of a bad contact.

Adapting a classic ceiling light to a DCL box

A predominantly technical fixture connects to the same block, provided the wire cross-sections match. If the original terminal block looks borderline, redo the connection from scratch rather than stacking connections.

Can you fix a ceiling light to the ceiling without a DCL box?

Yes, and it is the most common case. The ceiling light bracket is screwed directly into the flush mounting box, or into the slab with a suitable anchor. The DCL box remains a practical intermediary: without it, the installation holds, it simply requires more careful identification at the start.

Replacing a DCL hook with a screw

The hook is unscrewed, the screw takes its place in the same hole, provided you choose a larger diameter and a length that really bites into the substrate. A screw hook replaces the hook when the fixture is suspended.

DCL box without a hook: what to do?

Many boxes carry none, and that is normal. The hook is only used for pendant models. For a surface-mounted ceiling light, the metal bracket of the fixture is screwed directly onto the box, or next to it, onto the slab.

Fixing a ceiling light without drilling the ceiling

It is realistic on a sound ceiling and a light fixture: reinforced adhesive fixing for a strip, or an invisible mounting. Beyond a small model, you drill. Old plaster and plasterboard hold better than you would think with the right anchor.

If the light point cannot move, it is better to rethink the distribution than to force a fixing: learning to light a room without a ceiling light often remains the best answer. For a lowered model, height is considered before fixing, as explained in our method for installing a pendant on a DCL box.

Unsure about the fixing to plan before ordering? The workshop answers installation questions and helps you decide: simply contact us directly.

And when the fixing is already good, changing the ceiling light takes an evening.

How do you wire a ceiling light to a DCL box?

Switch off at the breaker, then identify three conductors: the live, the neutral and the earth. On a DCL box, the plug does the rest. It clips and unclips by hand, without tools, and that is its whole point on the day you change the light fixture.

Identifying live, neutral and earth

Identification is done before removing the old fixture: you note it down, photograph it, label it. Earth is green and yellow, neutral is blue, the live arrives on the central terminal block. A swap between live and neutral does not prevent the light from coming on, but it leaves a conductor live when the switch is open. The wire-by-wire detail appears in our article on wiring a ceiling light.

What the DCL plug does not support

A heavy load, for example a large chandelier. The plug handles the current, not the weight: the hook or the screw takes the strain. A fixture with an integrated driver connects without issue, like most of the LED ceiling lights in our catalogue.

Two reminders before climbing the ladder: you never cut the earth, and a badly tightened connector block heats up. Our guide to wiring a ceiling light details the tightening, and the one on wires and safety at the ceiling revisits old fabric installations.

Which ceiling light should you choose before climbing the ladder?

Choose the mounting first, then the socket. On a survey of 147 product pages in our catalogue as of 29 September 2026, 85% of the models are surface-mounted and 10% suspended: surface mounting remains the safe bet when the light point is central. The socket, for its part, decides the bulb.

Surface-mounted or suspended: which mounting for which room?

The collection counts 4929 ceiling light references as of 29 September 2026, which leaves enough to find the model that will suit your point rather than a compromise.

E27 socket, integrated LED or GU10?

On a survey of 113 product pages declaring a socket, as of 29 September 2026, 31% are E27 and 24% integrated LED. E27 lets you choose the bulb and its colour temperature; integrated LED imposes the rendering but simplifies everything. For a living room, a well-proportioned living room ceiling light is worth more than a larger model that is badly centred.

When the hesitation concerns a specific model, buyer reviews can be read on the establishment's Google listing.
