Wiring a Ceiling Bulb: Wires, Socket and Safety

What wire color to connect a ceiling bulb?

The green-yellow carries earth, light blue the neutral, and red, brown or black the live. On a recent ceiling sleeve, all three arrive together. On an older installation with two identical wires, a multimeter decides before screwing anything.

The green-yellow, light blue and others

• Green-yellow: earth, never cut, never put in a terminal block with another wire
• Light blue: neutral, it returns to the panel by the same path as the live
• Red, brown, black: live, this is the wire carrying 230 V
• Orange or purple: the traveler of a two-way switch, between two switches

A sleeve coming out with only one blue and one red requires no research: the connection takes two terminal blocks. When lighting accompanies a renovation of your living room, this identification is done before painting, not after.

Identifying the live when all wires look alike

Turn off the breaker, strip the two wires, then measure in voltage position: the one showing 230 V against neutral is the live. Mark it with a piece of colored sleeve before restoring power. This mark avoids reversal during reassembly, which trips the circuit on first switch-on.

How to connect a ceiling lamp with two wires?

A two-wire fixture connects to neutral and live: one wire per terminal block, earth remains free. Tighten, gently pull on each wire to check hold, then close the terminal cover. A double-insulated lamp is connected exactly this way.

Connecting a two-wire fixture

The action is short, but order matters. Turn off at the breaker, verify no voltage, then present the fixture against the ceiling to assess required wire length. Too short, you pull on conductors; too long, you won't close the cover. Allow two to three centimeters of margin.

If you are unsure about the exact order of operations, this guide details how to connect a ceiling lamp step by step.

What double insulation changes

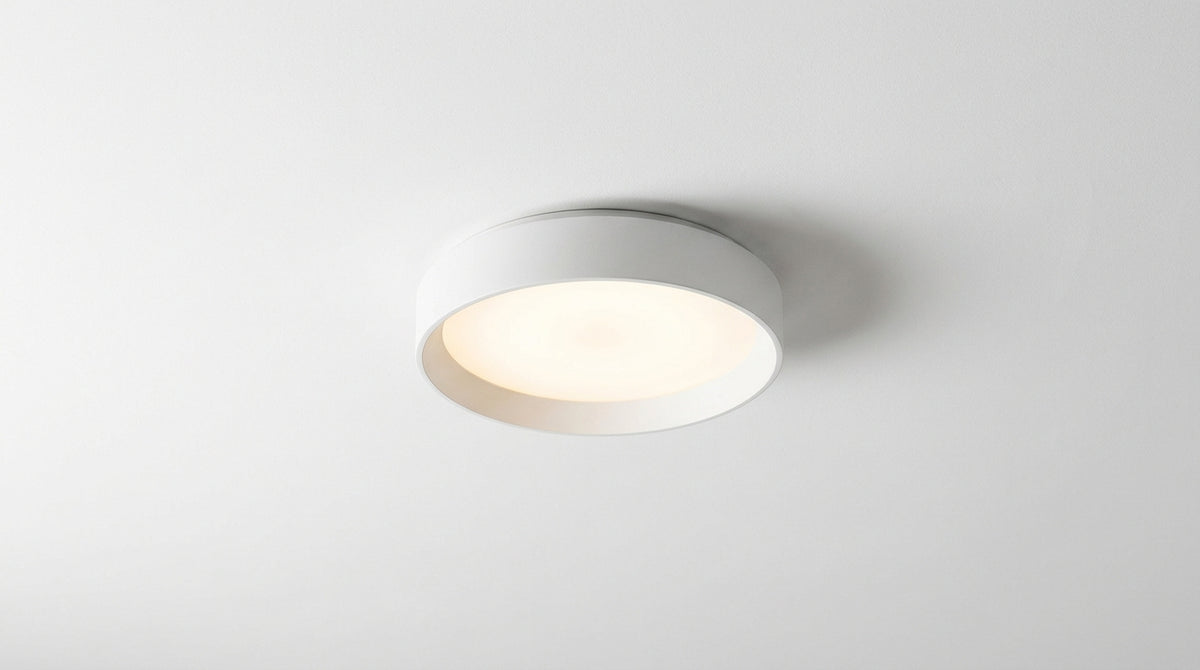

The double square symbol on the label indicates a class II fixture. No accessible metal part can become live in case of fault: earth has nothing to do there. This is the case for most closed glass or plastic ceiling lights.

Choose a ceiling light as much for its look as for its connection. In a range of ceiling lamps, the spec sheet indicates the number of wires, class and base before purchase.

How to install a ceiling light with or without a DCL box?

The DCL box is a three-terminal base screwed to the ceiling, closed by a removable cover. The fixture connects to it via a connector, without touching fixed wires. Without DCL, wires come out bare from the ceiling and connect one by one in terminal blocks.

The DCL box, three terminals and a cover

Three terminals, one per conductor: earth, neutral, live. The cover unscrews a quarter turn, the fixture connector fits, and the assembly closes without tools. This is the fastest setup to redo when changing models. For details, see how to install a light on a DCL box.

The second advantage is weight. A properly screwed box in the ceiling support distributes the load, which matters for a glass or multi-arm model. The choice of support determines long-term hold as much as tightening.

Once the connector is in place, the rest is about height and orientation. Knowing how to connect a ceiling light without forcing the terminals avoids crushing a wire in the terminal.

Without DCL, what to plan

Many older homes have only a single ceiling feed, with one center point for the whole room. If you want to connect several lamps on a single feed, wire gauge and number of points to redo determine what is possible without running a new line.

If your ceiling has neither box nor earth terminal, have the solution validated before opening anything: a message is enough to describe your case and get the right setup. Just talk to an advisor with two photos to decide.

Is it mandatory to connect earth on a light fixture?

No, not systematically. A class II fixture, double-insulated, works without earth: this is the case for most plastic or closed glass ceiling lights. A class I metal fixture must instead be connected to earth, otherwise the casing remains live in case of fault.

Fixtures that have an earth terminal

The terminal is marked by the earth symbol, often near the terminal block. On a survey of 127 references from our catalog as of September 26, 2026, 80% declare metal in their composition: for these models, earth connection is not an option. The green-yellow wire connects first on removal and last on reassembly.

Those that don't have one

A two-entry terminal block indicates class II. The terminal cover and internal insulation provide protection, earth remains unused in the sleeve. Do not cut it: leave it pushed back neatly, it will serve for the next fixture. For mixed cases, this guide explains how to connect a ceiling light when the class is not indicated.

The most useful reference remains the chosen base. On the same survey, 97% of ceiling lights are IP20, which destines them for dry rooms: a bathroom model requires another rating, not another earth. Among glass models, the closed LED ceiling light cleans with a cloth without exposing the terminal block.

What base and bulb once the socket is in place?

E27 for most ceiling lights, E14 for small formats, GU10 for adjustable spots. On the survey of 127 references dated September 26, 2026, 32% declare an E27 base, 9% a GU10 and 4% an E14. Check the mention on the spec sheet before buying the bulb.

E27, E14, GU10: how to recognize the right one

Diameter decides at a glance. Measure the socket or compare visually with the following three references.

• E27: large screw base, 27 mm diameter, the standard for living room ceiling lights
• E14: small screw base, 14 mm, reserved for compact fixtures
• GU10: two bayonet pins, non-screw base, adjustable on track
• Integrated LED: no bulb to change, the source is soldered into the fixture

A base error cannot be corrected at assembly time. This guide helps to recognize the right bulb base from a simple photo of the socket. And if you stick with classic screw-in, E27 base bulbs cover most ceiling lights in the catalog.

2700 K or 4000 K depending on the room

Color temperature changes the whole rendering. 2700 K gives a warm, settled light, suitable for living room and bedroom. 4000 K lights whiter, useful above a worktop or in a hallway. In between, 3000 K remains the most common compromise for a living space.

The choice does not depend on the fixture but on use. A dimmable ceiling light accepts both ambiances depending on the time, provided the bulb supports dimming. This comparison of bulb types and color temperatures details renderings room by room.

A final reference before deciding: perceived tint also depends on walls. On a white wall, a 4000 K appears colder than it is, and white or yellow light is chosen in front of the room, not on a color chart.

Finally, a new bulb that does not light is not necessarily dead: poorly screwed base, incompatible dimmer or faulty socket. Help and after-sales decides in a few minutes, before taking everything apart again.
