220V dimmable LED strips

Connect the strip to the mains supply, adjust the intensity, and the light drops from full output to a soft halo with no hard cut-off. A dimmable 220V LED strip connects directly to 220 volts, with no transformer or driver to house: the built-in or wall dimmer lowers the light output. The light is diffuse and continuous on COB versions, which makes it suitable for indirect lighting: cornice, skirting board, cabinet base.

What is a dimmable 220V LED strip and what light does it give?

The range of 220V LED strips brings together flexible strips, self-adhesive on the back, that are fitted to a smooth surface and connected to the mains. You choose the length, the white temperature and the type of diodes according to the surface to be lit.

Dimming: how it shows

At full intensity, the strip highlights the relief of a cornice or a worktop. Dimmed down, it becomes a hallway night light or a discreet halo behind a sofa, without a hard cut-off. That is what sets a dimmable strip apart from an all-or-nothing strip: the same light line serves the evening and functional use.

COB or SMD: two different light renderings

SMD shows separate light points: at close range, on a cabinet base, they are visible. COB gives a continuous band, without breaks, preferable on a cornice seen up close or behind a mirror. In both cases, the strip stays flexible, bends around corners and sticks to a clean surface.

Where to install a dimmable 220V LED strip: ceiling, skirting board or cabinet?

Fit it where the source should not be seen and where a mains supply already exists: in a cornice to bounce a halo onto the ceiling, in a skirting board to guide a hallway, under a kitchen wall cabinet or behind a sofa. The location is therefore decided together with the connection, not only with aesthetics.

Ceiling LED lighting: cornice and indirect light

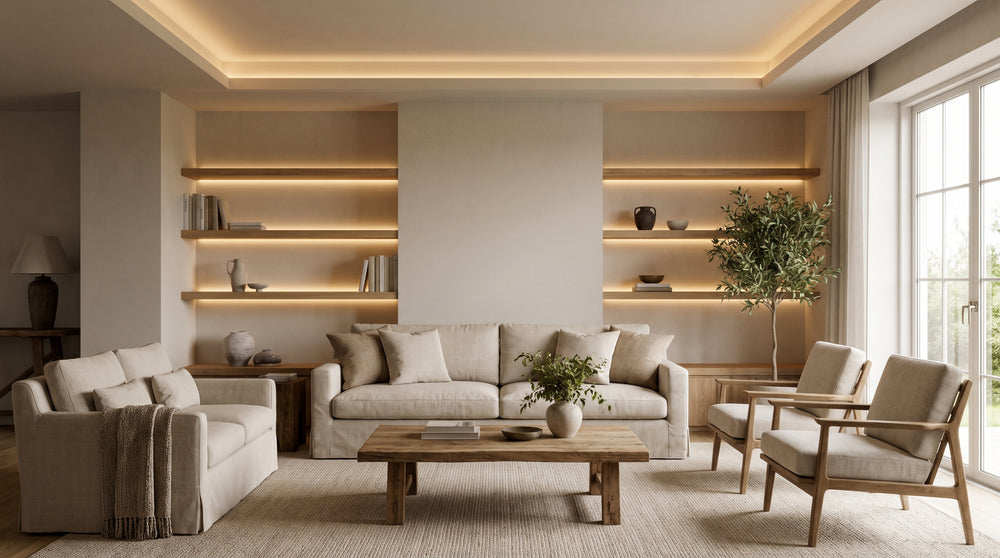

A cornice that bounces the light upwards visually widens the room and softens hard shadows. The strip must be hidden by a profile or a ceiling return, otherwise the source is visible. For a living room, this is the most comfortable installation: lighting a living room with indirect light rarely needs more than one continuous line.

Skirting board, under-cabinet, niche: the installations that work

In a skirting board, the strip becomes a circulation guide that you dim in the evening. Under a kitchen wall cabinet, it lights the worktop without the shadow cast by the cabinet body. In a bookcase or a niche, it sets objects apart from the background. In a wet room, go for strips protected against moisture, and complete the room with all Designix light fittings for the main lighting.

How to connect a 220V LED strip without a transformer?

Switch off the power at the circuit breaker, prepare the connection according to the manufacturer's instructions, then connect the strip to the mains supply. No intermediate driver is needed. Additional sections are tapped off the supply. In a damp area, the connection must be protected and placed out of reach of splashes.

Connecting to the mains

Follow the connection direction indicated and the instructions before any work. A waterproof connector or a closed junction box prevents poor contacts on a skirting board or bathroom installation. If the supply is taken from an existing circuit, check that it is not already controlled by a switch you want to keep.

Tapping, splicing and cable length

Several sections fed from the same point give an even line. Avoid connections in a splash zone or under a washable cabinet. The connectable length depends on the strip and the available supply: it is read on the model's data sheet, not from a general rule. Beyond that, tap off rather than extend in series.

Which dimmer for a 220V LED strip: wall, remote control or built-in?

The wall dimmer is built into the switch and used every day. The remote control avoids work when the strip is already fitted. The wheel built into the strip remains the simplest to put into service. In all cases, the dimmer must be designed for an LED load, otherwise the dimming flickers or stops before the minimum.

The daily gesture of each solution

A rotary wall dimmer sits at hand height, at the entrance to the room: it is the most natural for a living room cornice. The radio remote control suits a niche or a hard-to-reach cabinet base. The built-in wheel requires staying within reach of the strip, which reserves it for short, accessible lengths.

Check compatibility before connecting

A dimmer designed for conventional lighting does not always drive an LED load: the low range may drop out. Look for the LED-compatible mention and the manufacturer's minimum load. The family of LED strips groups the models with built-in dimming when you do not want to touch the wall installation.

Cuttable LED strip: how does it work?

Locate the cutting zone printed on the strip, measure a second time, then cut in the middle of the mark with a clean tool. A cuttable strip can only be cut at that point: elsewhere, you cut into a track and the section no longer lights up. The next section must be re-supplied by a connector designed for that, never soldered at random. Keep the instructions: they indicate the cutting zones and the type of connector to use. A strip that is too short cannot be lengthened, hence the double measurement before cutting.

220V LED strip or 24V LED strip: which to choose?

The dimmable 220V strip avoids the driver: a single mains connection, practical in renovation. The 24V strip requires a driver to house but handles long lines and large colour continuities better. The choice is therefore made on the length to cover and on the space available for the supply.

How to dim a 12V or 24V strip?

A 12V or 24V strip is dimmed with a dimmable driver or a low-voltage dimmer. Check the dimming range and the minimum load on the product data sheet: the 220V dimmer does not apply to these strips.

220V strip: the advantage of a single connection

In renovation, when a supply already exists behind a skirting board or above a cabinet, 220V removes the box to hide. It is the simplest format for a few metres of cornice in indirect light.

24V strip: for long lengths

On a long line, the lower voltage limits the loss of brightness at the end of the strip. A driver must then be housed near the strip. If you are looking for a coloured effect, also compare colour RGB LED strips and RGBW versions with adjustable white.

For long lines and everyday installations, see 24V low-voltage LED strips.

Which white temperature and which protection rating to choose?

In a dry room, an IP20 strip is enough, and 2700K gives a warm living room light whereas 3000K offers a more neutral white for the kitchen. In a bathroom or near a pool, a protected strip is needed, at least IP65, with a connection sheltered from splashes.

Warm white 2700K or neutral white 3000K

2700K leans towards the evening mood: bedroom, living room, bookcase base. 3000K stays neutral and renders colours accurately on a worktop. The most important thing is the match with the other sources in the room: a very warm strip under a neutral ceiling light stands out. See warm light in 2700K and neutral white 3000K.

IP20 in a dry room, IP65 in a damp area

The protection rating describes resistance to dust and water. An IP20 stays in a dry room, away from splashes. In a bathroom, around the mirror, and at the edge of a pool, switch to a protected strip, with dimmer and connectors out of reach of water. For submerged outdoor use, see strip lighting for pools.

How to install and maintain a 220V LED strip so it lasts?

Stick to a clean, dry and smooth surface, follow corners without folding the strip, and let it release its heat on a suitable support. For maintenance, dry dusting is enough. A strip that has come unstuck or a dimmer that flickers should be checked before being replaced.

The mistakes that damage an LED strip

A dusty or greasy surface makes the adhesive give way within a few weeks. A strip folded sharply on a corner breaks a track. Fitting on a surface that heats up ages the LED faster, and a connection left in damp air eventually oxidises. A dimmer not compatible with LEDs also wears the strip through flickering.

Cleaning and durability

Dust dry, without aggressive products on the band. Check from time to time that the adhesive holds, especially above a cabinet. An aluminium profile helps to diffuse the light and keep the strip straight on a long line. Check the dimmer at the start of the season: a dimming that crackles often announces a replacement.

In the shop, payment is secure, delivery is tracked and returns are possible, with Designix customer service for any installation question. Once your length, white temperature and protection rating are set, all that remains is to choose your 220V strip from the collection; for the main lighting of the room, browse the complete light fitting catalogue.
